• BMW 3 E46 2001 - 2007 Light Module ML

Multi Light-Modul (Lightmodule) for BMW 3 series (E46), all modell years



Features of the module:

  • Comfort Indicator
  • Cornering Light

  • Daylight

  • US-Indicator
  • Coming Home

  • Home Light

  • Close Light

  • Window / sunroof remote

  • Emergenzy Stop Hazard
  • Chirp module

  • Mainswitch


Comfort Indicator:
Just tip at the flashing lever and the indicator will flash three times.


Cornering Light:
If the headlight is active and you use the indicator both fog lights will be turned on for a few seconds. This features works up to a speed of 40 km/h.

Daylight:
After starting the engine the daylight will be tunred on automatically if the headlight is switched off. As daylight you can use foglights, headlight, indicaotr (US-Light) and taillight or any combination of them.

If the headlight will be activated by BMW light automatic the daylight will be turned off.


Coming Home:
After driving with headlight and turning off the ignition first and then the headlight, this feature will light up for a setup time. At the setup menu you can choose between light, headlight, high beam, fog lights, indicator, taillight or any combination of them. You can also change the active time between 15 and 75 seconds.

Home Light:
If you open the car by original key remote the Home Light will be activated for 15-75 seconds. At the setup menu you can choose between light, headlight, high beam, fog lights, indicator, taillight or any combination of them. You can also change the active time between 15 and 75 seconds.

Close Light:
This feature is the same as Home Light only when closing.

Window / sunrrof remote:
Push two times at the original key remote and the windows / sunroof will be opened automatically. At the setup menu you can choose which windows / sunroof should be opened if you push on the remote.


Emergenzy Stop Hazard:
If you are driving more than 60 km/h and make an emergency brake the hazard signal will be turned on automatically for seven seconds to warn the cars behind you.


Chirp module:
It is possible ut use an external horn (not included; 12V+, max. 500mA) for an accoustic signal when the car will be opened or locked by original key remote. At the setup menu you can choose if this feature should work on opening, closing or both. If you unlock it will sound one time. If you lock it will sound two times.

Mainswitch:
At the integrated programming mode the module can be deactivated completely.


Installation:
The installation can be done by yourself. A detailed, illustrated manual shows the installation step by step.


You can also use this Multi Light Module together with:

- AIO-Top Comfort Module

- Advanced Bordcomputer Module

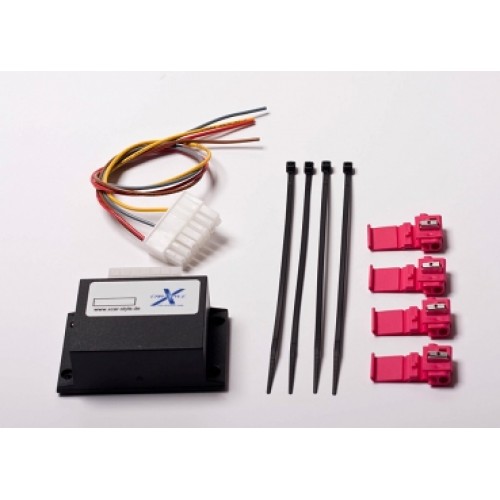

Delivery:

  • Modul BMW 3 series (E46) Multi Light Module (ML)
  • Connection material
  • Detailed, illustrated manual


Technical data:
Voltage : 8-18V DC
Power consumption : <1mA Standby / max. 70 mA Use
Temperature: -40 °C bis +85 °C

Dimensions: (B x T x H): 68 x 58 x 24 mm

BMW 3 E46 2001 - 2007 Light Module ML

  • Product Code: M-2024
  • Availability: In Stock
  • 148.90€

  • Ex Tax: 124.08€
